Assemble your FIXAR 025

Step 4. Choose your UAV color palette

Red

FIXAR signature color palette is red

Step 5. Choose your payload

Select a payload to match your application’s operational requirements

Gimbal video cameras

FIXAR

A40TR

$

100

40x daylight zoom plus thermal and a laser rangefinder with auto-tracking for fast target lock and coordinates. Adds reliable long-range day/night awareness for patrol and response
‍

Weight: 1.1 kg / 2.5 lb
EO optical zoom: 40×
IR resolution: 640×512
IR optical zoom: 1×
LRF: 3 km / 1.9 mi (≈ 9,843 ft)
Stabilization: 3-axis
AI object tracking: Yes

FIXAR

A40TR-35

$

100

40× daylight zoom with thermal, autonomous detection/tracking, and long-range distance measurement. Suited for standoff observation where quick identification matters
‍

Weight: 1.2 kg / 2.6 lb
EO optical zoom: 40×
IR resolution: 640×512
IR optical zoom: 1×
LRF: 3 km / 1.9 mi
Stabilization: 3-axis
AI object tracking: Yes

FIXAR

A10TR

$

100

Compact three-in-one gimbal (daylight, thermal, rangefinder) with tracking. A balanced choice for search, incident assessment, and routine monitoring

‍

Weight: 0.7 kg / 1.4 lb
EO optical zoom: 10×
IR resolution: 640×512
IR optical zoom: 1×
LRF: 1.5 km / 0.9 mi (≈ 4,921 ft)
Stabilization: 3-axis
AI object tracking: Yes

FIXAR

A10T

$

100

Dual-sensor daylight + thermal gimbal with built-in tracking. Lightweight option for inspections and search tasks with clear day/night visuals

‍

Weight: 0.6 kg / 1.3 lb
EO optical zoom: 10×
IR resolution: 640×512
IR optical zoom: 1×
LRF: No
Stabilization: 3-axis
AI object tracking: Yes

FIXAR

Q10

$

100

Stabilized daylight zoom for clear long-range visuals when thermal is not required. A cost-effective tool for inspection and general observation

‍

Weight: 0.5 kg / 1.1 lb
EO video: up to 4K
EO optical zoom: 10×
Stabilization: 3-axis
Horizontal FOV: 66.4°
Storage: microSD up to 512 GB
IR: No

NextVision

Dragon Eye II

$

100

Ultra-light daylight + thermal gimbal that maximizes endurance without sacrificing stable imaging. Good for long patrols and mobile targets

‍

Weight: 0.1 kg / 0.3 lb
EO video: up to 1080p
EO optical zoom: 40×
IR resolution: 640×480
IR zoom: 4×
LRF: No
Stabilization: 3-axis

NextVision

Raptor

$

100

Deep optical zoom and long-range thermal performance with strong stabilization. Designed for demanding surveillance at extended distances

‍

Weight: 0.6 kg / 1.4 lb
EO video: up to 1080p
Total zoom: 80×
IR resolution: 1280×720
LRF: No
Stabilization: 3-axis
Protection: IP54

Merio Temis

XL (2-axis)

$

100

Simple, robust stabilized gimbal with daylight/thermal options and add-on modules (tracking, ranging). Practical when low weight and straightforward operation are priorities

‍

Weight: 1.1 kg / 2.4 lb
EO optical zoom: 30×
IR resolution: 640×480
IR optical zoom: Fixed (no optical zoom)
LRF: No
Stabilization: 2-axis
AI object tracking: Yes

Merio Milvus

MLV_14Z

$

100

Compact daylight + thermal gimbal with infrared optical zoom. Efficient fit for long-endurance monitoring and basic evidence capture

‍

Weight: 2 kg / 4.4 lb
EO optical zoom: 30×
IR resolution: 640×480
IR optical zoom: 5×
LRF: 12 km / 7.5 mi (≈ 39,370 ft)
Stabilization: 3-axis
AI object tracking: Yes

Merio Milvus

MLV_10M

$

100

Lightweight stabilized daylight camera for simple, reliable viewing. Suited to basic monitoring with minimal payload weight

‍

Weight: 0.7 kg / 1.4 lb
EO video: up to 1080p
EO optical zoom: 10×
Stabilization: 3-axis
Storage: microSD
IR: No

Merio Temis

XL14HD

$

100

High-resolution thermal-first gimbal for clean heat-signature detection at range. Ideal when thermal evidence is the main objective

‍

Weight: 1.6 kg / 3.4 lb
EO optical zoom: 30×
IR resolution: 1280×1024
IR optical zoom: Fixed (no optical zoom)
LRF: Optional
Stabilization: 2-axis

RGB mapping cameras

Sony

ILX-LR1

$

100

61 MP interchangeable-lens industrial camera for sharp maps and inspections. Lightweight body supports long flights and accurate photogrammetry

‍

Weight: 0.7 kg / 1.5 lb
Resolution: 61 MP
Sensor format: Full-frame
Lens focal length: 35 mm
GSD @ 100 m / 328 ft: 1 cm/px
Shutter type: Mechanical / Electronic

PhaseOne

iXM-GS120 35mm

$

100

120 MP global-shutter aerial camera with a 35 mm lens for high-throughput surveys. Delivers sharp geometry with rapid capture cycles

‍

Weight: 1.1 kg / 2.5 lb
Resolution: 120 MP
Sensor format: Medium format
Lens focal length: 35 mm
GSD @ 100 m / 328 ft: 1 cm/px
Shutter type: Electronic global

PhaseOne

iXM-GS120 80mm

$

100

120 MP global-shutter platform with an 80 mm lens for finer ground detail. Suited to assets and corridors that need higher precision

‍

Weight: 1.1 kg / 2.5 lb
Resolution: 120 MP
Sensor format: Medium format
Lens focal length: 80 mm
GSD @ 100 m / 328 ft: 0.4 cm/px
Shutter type: Electronic global

PhaseOne

P5 35mm

$

100

128 MP next-gen aerial camera; 35 mm favors efficient area coverage with survey-grade quality. Built for consistent, repeatable mapping

‍

Weight: 0.6 kg / 1.4 lb
Resolution: 128 MP
Sensor format: Medium format
Lens focal length: 35 mm
GSD @ 100 m / 328 ft: 1 cm/px
Shutter type: Electronic global

PhaseOne

P5 80mm

$

100

128 MP camera with an 80 mm lens to push ground resolution on critical surveys. Ideal for detailed inspection and precision mapping

‍

Weight: 1.2 kg / 2.7 lb
Resolution: 128 MP
Sensor format: Medium format
Lens focal length: 80 mm
GSD @ 100 m / 328 ft: 0.4 cm/px
Shutter type: Electronic global

Multispectral imaging

Micasense

RedEdge-P

$

100

Five narrow bands plus a panchromatic channel for pan-sharpened outputs. Standard choice for vegetation indices and crop/land monitoring

‍

Weight: 0.4 kg / 0.8 lb
Spectral bands: Blue (475 nm), Green (560 nm), Red (668 nm), Red Edge (717 nm), NIR (842 nm) + Panchromatic
Resolution: 1456×1088 (1.6 MP per MS band) + 2464×2056 (5.1 MP Pan)
Shutter: Global shutter
FOV: 49.6° (H) × 38.3° (V) (MS) / 44.5° (H) × 37.7° (V) (Pan)
GSD @ 120 m / 400 ft: 7.7 cm/px / 3 in/px (MS), 4 cm/px / 1.6 in/px (Pan)

Agrowing

Sextuple (ILX-LR1 addon)

$

100

Sextuple-band lens kit that turns the ILX-LR1 into a multispectral camera. Captures RGB and multispectral data in one workflow

‍

Weight: 0.4 kg / 0.9 lb
RGB resolution: 61 MP
Multispectral: 14-band, 7.2 MP per band
Bands (nm): 405, 430, 450, 490, 525, 550, 560, 570, 630, 650, 685, 710, 735, 850
Lens focal length: 21.8 mm
FOV: Diagonal 40.8° / Horizontal 33° / Vertical 25°

LiDAR

TOPODRONE

LiDAR 200+

$

100

Airborne LiDAR package with onboard motion/positioning for survey-grade point clouds. Suitable for terrain models, corridors, and site scans

‍

Weight: 0.7 kg / 1.6 lb
Max range: 300 m / 984 ft
Point rate: 640k–1.9M pts/s
Laser returns: Single / Dual / Triple
FOV: 360° (H) × 40.3° (V)
Channels (lines): 32
Accuracy: 3–5 cm / 1.2–2 in
Protection class: IP67

Riegl

VUX-180-24

$

100

High-speed LiDAR for fast, precise nadir scanning on complex sites. Used when capture speed and accuracy are critical

‍

Weight: 2.7 kg / 5.9 lb (without IMU/GNSS)
Max range: 1,520 m / 4,987 ft
Max effective measurement rate: 2,000,000 meas./sec
FOV: 75°
Accuracy (1σ): 10 mm / 0.4 in
Protection class: IP64
IMU/GNSS: optional

Step 6. Choose additional equipment

Survey-grade geotagging (these items are required for the selected application and payload)

PPK improves geotagging accuracy from meter-level to centimeter-level by post-processing flight GNSS logs against a ground reference (base station or RTK network)

PPK receiver

Topodrone PPK receiver (Onboard)

$

200

Onboard GNSS module that logs raw satellite data for centimeter-level geotagging after the flight

Technical specifications
Weight: 0.1 kg / 0.1 lb

PPK accuracy: 2-3 cm / 0.8-1.2 in

GNSS: Multi-constellation L1/L2 (GPS, GLONASS, BeiDou, Galileo)

Channels: 184

Logging rate: 10 Hz

Storage: microSD up to 64 GB

Ground base station

Emlid Reach RS2+ (Base station)

$

100

Ground reference receiver that provides correction data for PPK processing to reach centimeter-level results

Technical specifications

Weight: 1 kg / 2.1 lb

PPK precision: H: 5 mm + 0.5 ppm / V: 10 mm + 1 ppm

RTK precision: H: 7 mm + 1 ppm / V: 14 mm + 1 ppm

UHF LoRa: 868/915 MHz, up to 8 km / 5 mi

Battery life: up to 22 hrs (logging)

Ingress protection: IP67

Data processing software

PPK processing software

$

100

Software used after the flight to combine UAV PPK logs with base station (or NTRIP) data and generate centimeter-accurate photo/point-cloud geotags

Required to achieve centimeter-level results

Software options depend on region/workflow (discuss with FIXAR team)

Supports workflows: Base station on site or NTRIP correction service

‍

Didn't find a suitable payload?

Contact Us

Step 7. Choose your communication link

Add a data link to ensure reliable communication between the UAV and ground control

Telemetry-only links

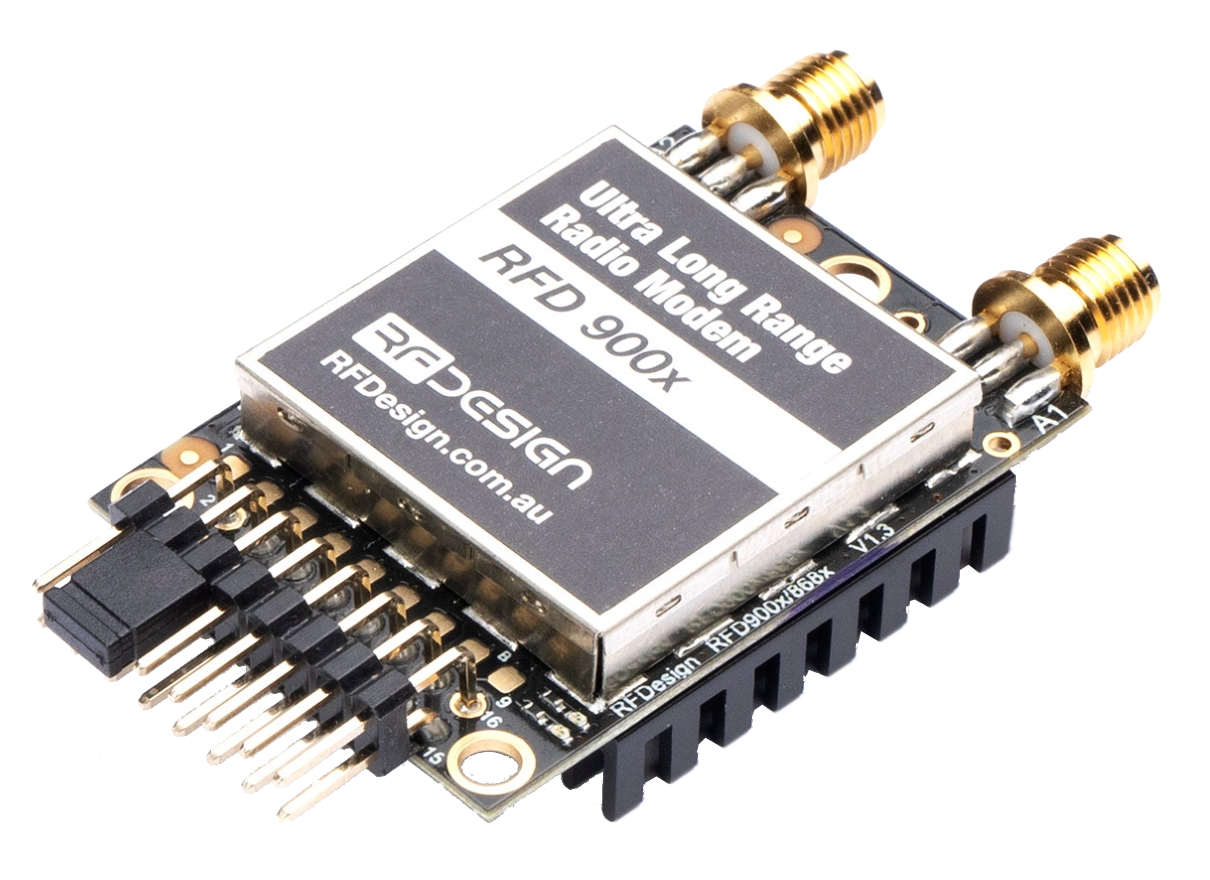

RFD 900x

up to 30 km / 19 mi

RF

optional LTE

$

100

Used with:

RGB mapping cameras, multispectral imaging, LiDAR, 360° spherical video cameras

Telemetry radio link for command and control and aircraft health data on mapping, multispectral and LiDAR missions without live video. Non-EU frequency option for long-range civil survey and mapping flights beyond visual line of sight.

‍

Weight (air): 0.1 kg / 0.1 lb
Link type: Telemetry-only C2 (no live video)
Max range: up to 30 km / 19 mi
Region/Band: Non-EU (900 MHz class)
Payload control: No (telemetry only)
Frequency hopping: Yes (FHSS)
Encryption: AES-128 (optional)

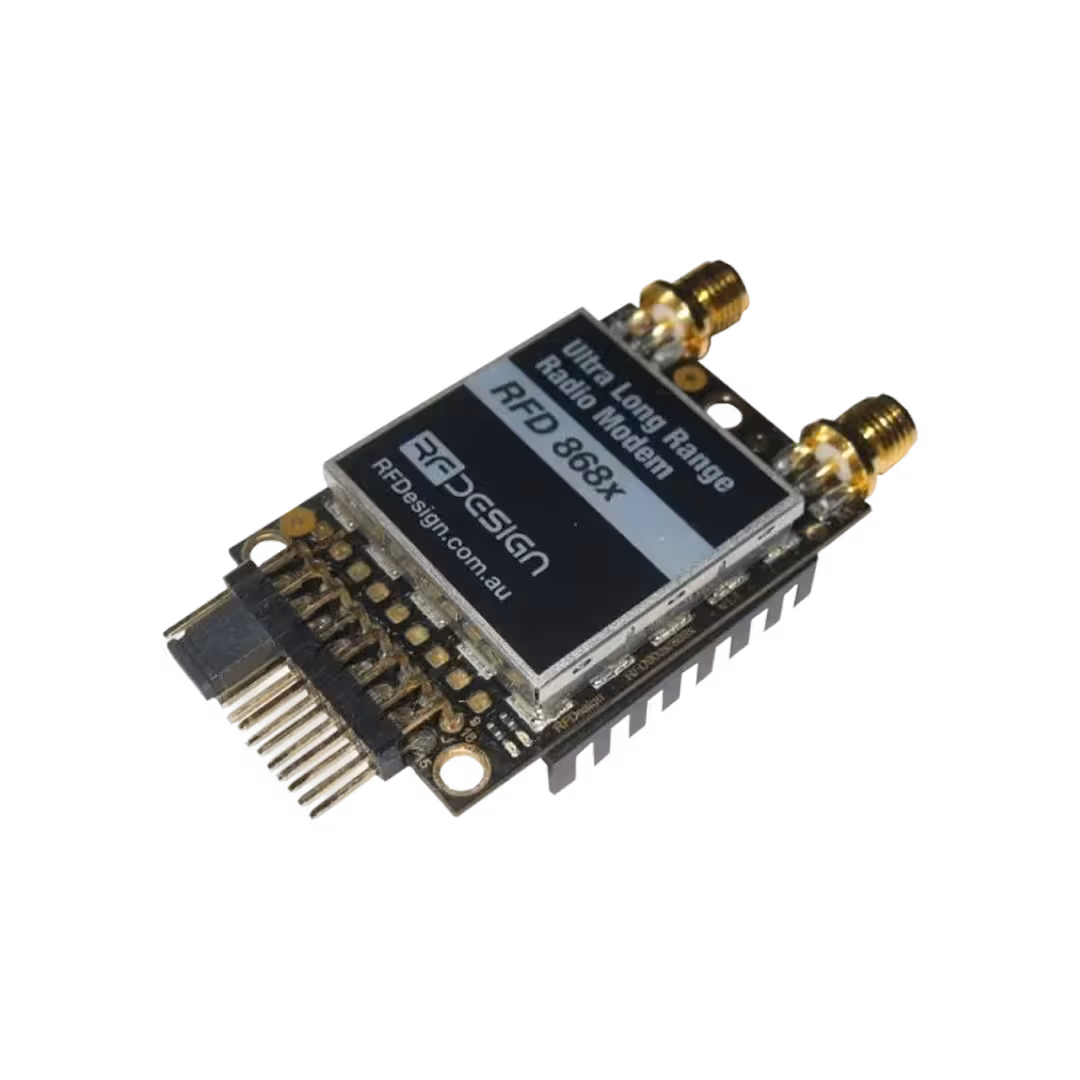

RFD 868x

up to 30 km / 19 mi

RF

optional LTE

$

100

Used with:

RGB mapping cameras, multispectral imaging, LiDAR, 360° spherical video cameras

Telemetry radio link for command and control and aircraft health data on mapping, multispectral and LiDAR missions without live video. EU-frequency version typically used for long-range civil survey flights beyond visual line of sight.

‍

Weight (air): 0.1 kg / 0.1 lb
Link type: Telemetry-only C2 (no live video)
Max range: up to 30 km / 19 mi
Region/Band: EU (868 MHz)
Payload control: No (telemetry only)
Frequency hopping: Yes (FHSS)
Encryption: AES-128 (optional)

Telemetry and video links

Microhard mobile

up to 15 km / 9 mi

RF

LTE

optional LTE

$

100

Used with:

all payloads

Portable radio link with telemetry and live video from onboard cameras. Used when the ground crew operates from a mobile location (vehicle or backpack) and needs live payload view on civil missions

‍

Weight (air): 0.2 kg / 0.4 lb
Link type: Telemetry + video
Max range: up to 15 km / 9 mi
Form factor: Mobile (portable)
Video stream: Yes
Encryption: AES-128 / AES-256
Interfaces: Ethernet (RJ45)
Mesh: No

Microhard stationary

up to 25 km / 16 mi

RF

LTE

optional LTE

$

100

Used with:

all payloads

Baseline fixed-ground radio for telemetry and live video in civil and search-and-rescue (SAR) missions. Cost-effective option where advanced interference avoidance is not required

‍

Weight (air): 0.2 kg / 0.4 lb
Link type: Telemetry + video
Max range: up to 25 km / 16 mi
Form factor: Stationary (ground setup)
Video stream: Yes
Encryption: AES-128 / AES-256
Interfaces: Ethernet (RJ45)
Mesh: No

Microhard stationary + LTE

up to 25 km / 16 mi

RF

LTE

optional LTE

$

100

Used with:

all payloads

Stationary radio with integrated LTE failover for telemetry and live video. Selected in regions where regulations or infrastructure require a cellular communication path in addition to RF

‍

Weight (air): 0.3 kg / 0.7 lb
Link type: Telemetry + video
Max range: up to 25 km / 16 mi (RF) + LTE included
Form factor: Stationary + LTE backup
Video stream: Yes
Encryption: AES-128 / AES-256
LTE: Cat-4 (DL up to 150 Mbps / UL up to 50 Mbps)
Failover: Auto switch between RF and LTE

DTC mobile

up to 15 km / 9 mi

RF

LTE

optional LTE

$

100

Used with:

all payloads

Tactical mobile radio for telemetry and secure live video in defence and public-safety missions. Backpack-style setup for teams that need to move together with the ground station

‍

Weight (air): 0.3 kg / 0.6 lb
Link type: Telemetry + video
Max range: up to 15 km / 9 mi
Form factor: Mobile (backpack/portable)
Video stream: Yes
Mesh: Yes
Encryption: AES-128 / AES-256 (licensed option)
Interference avoidance: Frequency hopping / advanced waveforms (licensed option)

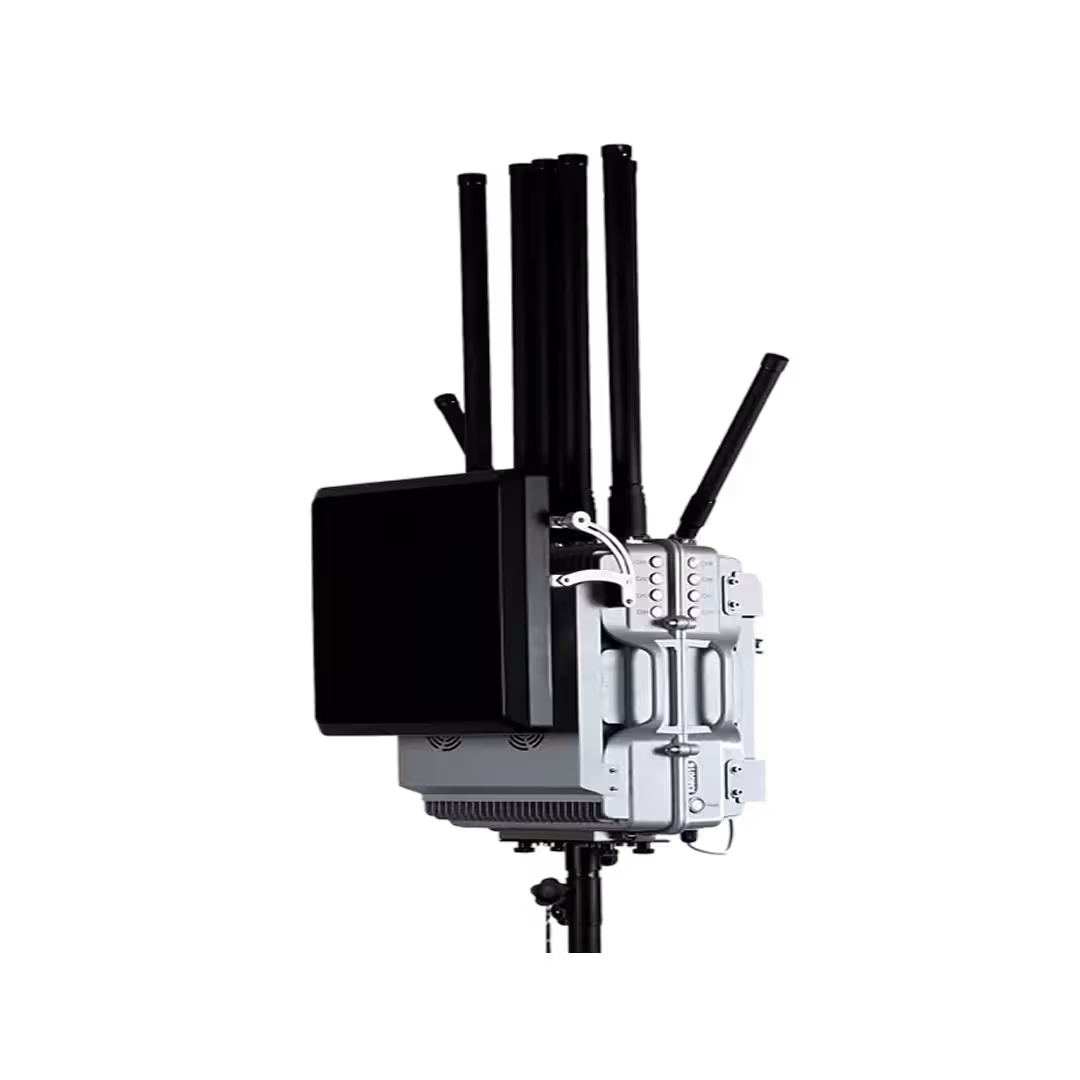

DTC stationary

up to 30 km / 19 mi

RF

LTE

optional LTE

$

100

Used with:

all payloads

Stationary tactical radio for telemetry and encrypted live video in defence and ISR missions. Used when a fixed ground site or mast is available

‍

Link type: Telemetry + video
Max range: up to 30 km / 19 mi
Form factor: Stationary (ground setup)
Video stream: Yes
Mesh: Yes
Encryption: AES-128 / AES-256 (licensed option)
Interference avoidance: Frequency hopping / advanced waveforms (licensed option)

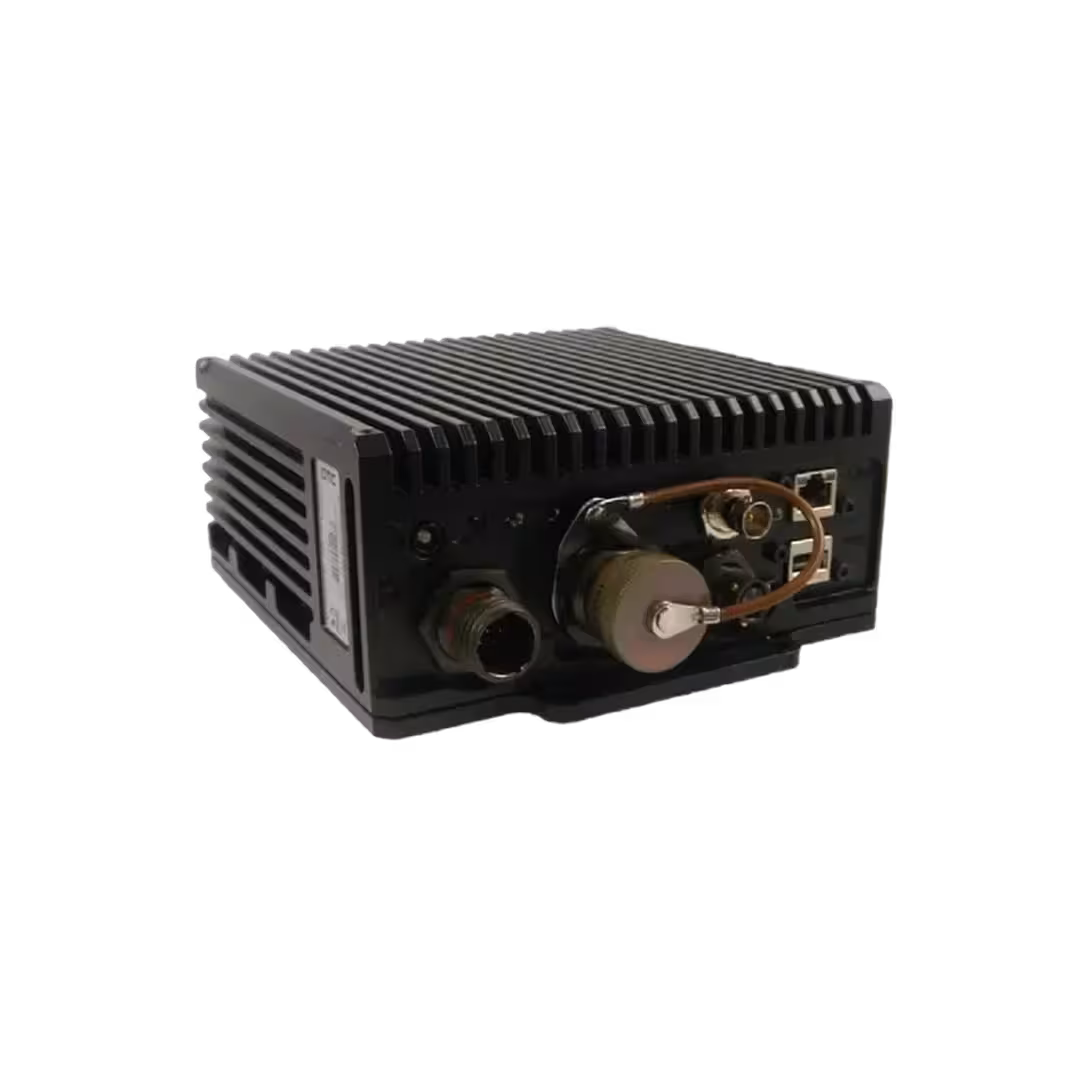

DTC Stationary+

up to 40 km / 25 mi

RF

LTE

optional LTE

$

100

Used with:

all payloads

Long-range stationary tactical radio for telemetry and encrypted live video. Preferred DTC option when maximum stand-off distance is required (maximal range on FIXAR 007, medium range on 025)

‍

Link type: Telemetry + video
Max range: up to 40 km / 25 mi
Form factor: Stationary+ (extended range setup)
Video stream: Yes
Mesh: Yes
Encryption: AES-128 / AES-256 (licensed option)
Interference avoidance: Frequency hopping / advanced waveforms (licensed option)

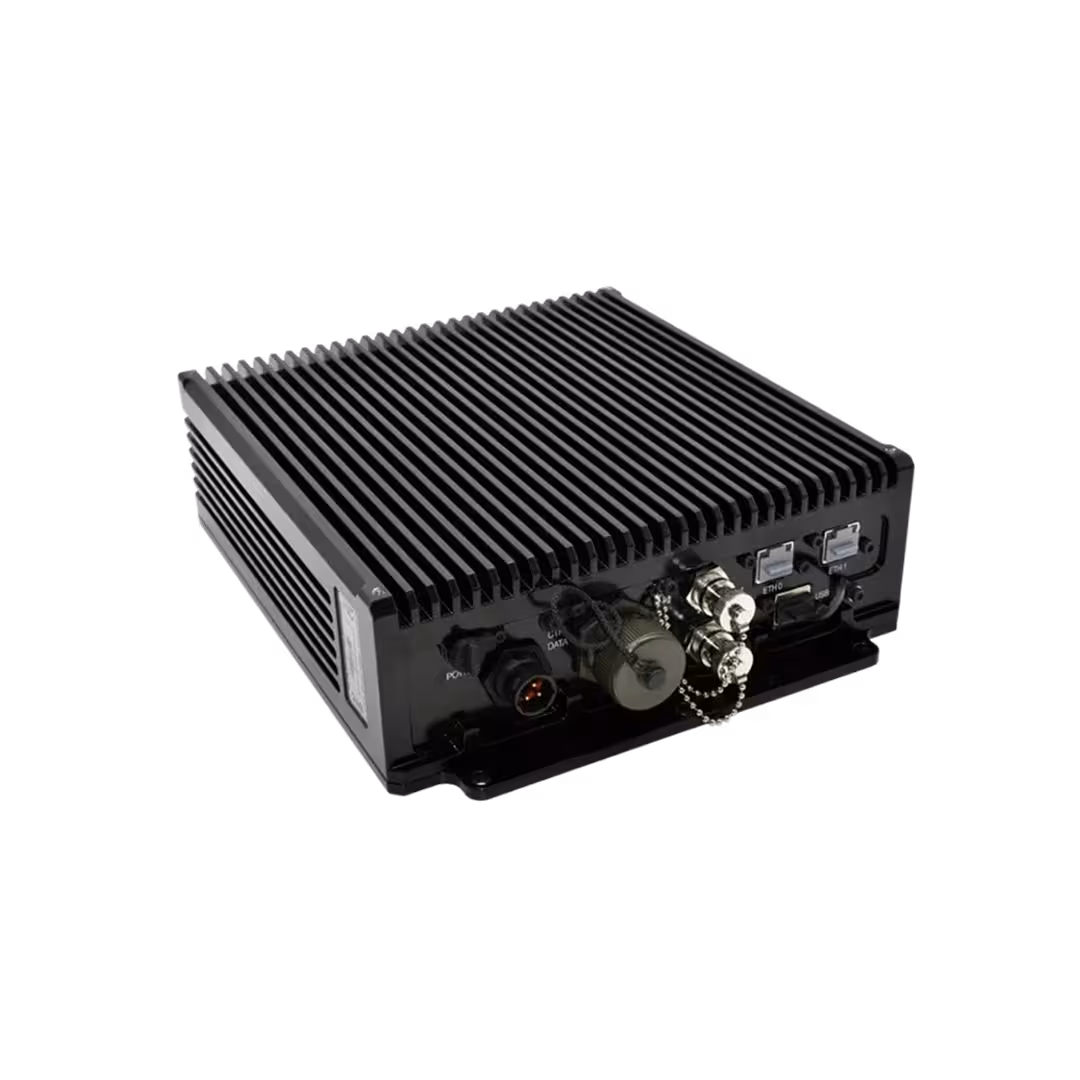

DTC BluSDR-90 (stationary)

90 km / 56 mi

RF

LTE

optional LTE

$

100

Used with:

all payloads

Factory-recommended DTC setup for FIXAR 025 with telemetry and encrypted live video for ISR missions. Provides interference avoidance, frequency hopping and MESH networking on 025-based solutions

‍

Weight (air): 0.6 kg / 1.3 lb
Link type: Telemetry + video
Max range: up to 90 km / 56 mi
Platform: FIXAR 025 only
Video stream: Yes
Mesh: Yes
RF output power: up to 10 W total (max)
Encryption: AES-128 / AES-256 (licensed option)

Additional LTE backup layer

DTC 4G secondary module

RF

optional LTE

LTE

$

100

Used with:

all payloads

Auxiliary 4G/LTE module that adds a cellular backup path for DTC radio links on FIXAR 025. Used as a redundant communication layer when RF links are unavailable; not a standalone datalink

‍

Weight (module): 0.1 kg / 0.1 lb
Type: LTE backup layer for DTC links (not standalone RF link)
Platform: FIXAR 025 only
Purpose: Redundant telemetry + video when RF link is unavailable
LTE: Cat-4 (with 3G fallback)
Max data rate: up to 45 Mbps (UL/DL)
SIM: Nano-SIM (4FF)
Interfaces: Ethernet (RJ45), USB (Host/Device)

Each product includes a set of unique FIXAR technologies

FIXAR Autopilot 2.0

The FIXAR Autopilot is fully developed in-house, eliminating external interference and ensuring maximum operational security. The Autopilot supports multi-mode flight, with navigation engineered for contested environments

Learn more

FIXAR xGroundControl software

FIXAR xGroundControl is used for 3D planning and real-time flight monitoring with an easy-to-use workflow and regular remote updates. It supports deployment with diverse ground hardware, including tablets, handheld controllers, and stationary ground control stations

Learn more

FIXAR BlackBox

FIXAR BlackBox is an independent microcomputer built in-house to aviation standards. It is an independent device that maintains a secure, tamper-resistant record of all flight commands and sensor data

Learn more

Patented aerodynamic design

FIXAR shatters multirotor limits with patented fixed-angle rotor tech. No hybrid gimmick – this engineering breakthrough can simultaneously generate aerodynamic surface-lift forces and vertical-lift force. Result: maximum lift. Higher payload capacity, longer flights, unmatched reliability in class

Learn more

Composite technologies

FIXAR UAVs use cutting-edge materials specially selected for aviation engineering, all sourced from premium non-Chinese suppliers: Kevlar™, carbon fiber, fiberglass, and ultra-light composites. They deliver unmatched strength-to-weight, rigidity, and RF transparency for maximum flight efficiency and link stability

Learn more

Quality assurance

Quality at FIXAR is not a checkbox – it is the foundation from design to mass production. FIXAR's quality management is certified to ISO 9001:2015 for the research, development, and production of unmanned aviation systems

Learn more

Additionally you receive

Training

Hands-on UAV operation and mission planning

FIXAR xGroundControl software

Full control and monitoring capabilities

Software license

Free access to updates for FIXAR Autopilot and FIXAR xGCS within the warranty period

Technical support

Free technical support within the warranty period

Your choice

FIXAR 025

Proven and efficient UAV for everyday missions

$

111

Selected color palette: Red

Proven and efficient UAV for everyday missions

Topodrone

LiDAR 200+

$

111

Topodrone

$

111

Topodrone

$

111

FIXAR 025

Proven and efficient UAV for everyday missions

$

111

FIXAR 025

Proven and efficient UAV for everyday missions

$

111

FIXAR 025

Proven and efficient UAV for everyday missions

$

111

Have questions?

Talk to one of our experts for answers or support

Talk to us

Share your configuration

Copy a link to share this UAV configuration with colleagues or save it for later

Assemble your FIXAR 025

Step 4. Choose your UAV color palette

Red

Step 5. Choose your payload

Gimbal video cameras

FIXAR

FIXAR

FIXAR

FIXAR

FIXAR

NextVision

NextVision

Merio Temis

Merio Milvus

Merio Milvus

Merio Temis

RGB mapping cameras

Sony

PhaseOne

PhaseOne

PhaseOne

PhaseOne

Multispectral imaging

Micasense

Agrowing

LiDAR

TOPODRONE

Riegl

Step 6. Choose additional equipment

PPK receiver

Ground base station

Data processing software

Didn't find a suitable payload?

Step 7. Choose your communication link

Telemetry-only links

RFD 900x

RFD 868x

Telemetry and video links

Microhard mobile

Microhard stationary

Microhard stationary + LTE

DTC mobile

DTC stationary

DTC Stationary+

DTC BluSDR-90 (stationary)

Additional LTE backup layer

DTC 4G secondary module

Each product includes a set of unique FIXAR technologies

FIXAR Autopilot 2.0

FIXAR xGroundControl software

FIXAR BlackBox

Patented aerodynamic design

Composite technologies

Quality assurance

Additionally you receive

Training

FIXAR xGroundControl software

Software license

Technical support

Your choice

FIXAR 025

Selected color palette: Red

Topodrone

Topodrone

Topodrone

FIXAR 025

FIXAR 025

FIXAR 025

Have questions?

Share your configuration

BlackBox

Watch FIXAR in action

Watch FIXAR in action

Get a quote for FIXAR UAV systems

Get help with your configuration

Get help with your configuration

Get help with your configuration
